Add Layer

Press ‘Add Layer’ button and select a supported map data file to open it.

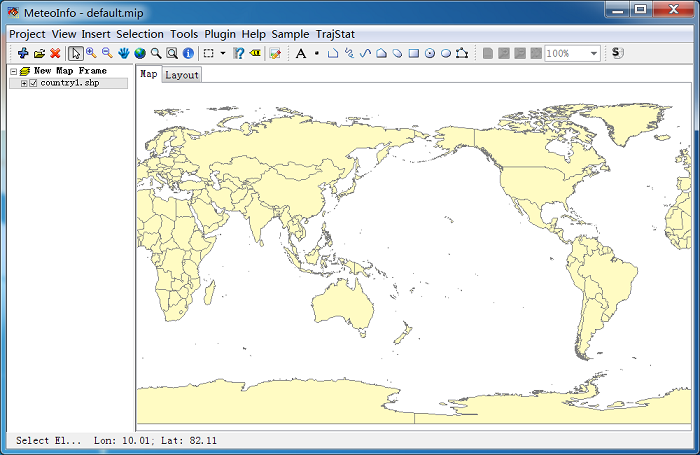

In this case, we select to open ‘country1.shp’ file. ‘country1.shp’ is a polygon shape file, so it is opened as a colored map. The default color is light yellow.

../../../_images/addlayer_country.png

Double click the layer name of ‘country1.shp’ to open its ‘Layer Property’ dialog to change the layer’s apperance.

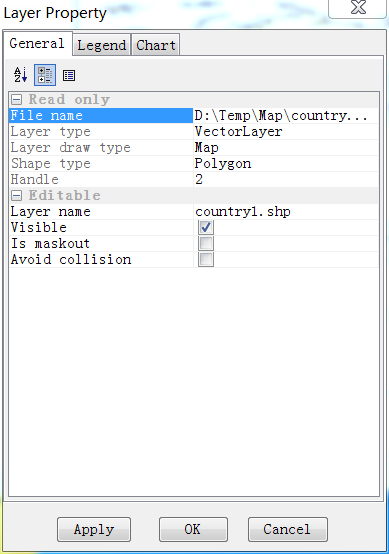

Vector layer properties:

../../../_images/layerproperty_vectorlayer.png

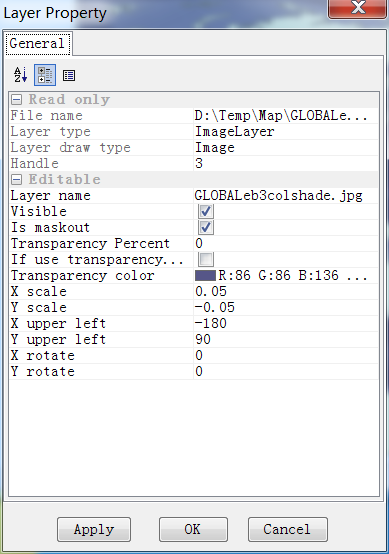

Image layer properties:

../../../_images/layerproperty_imagelayer.png

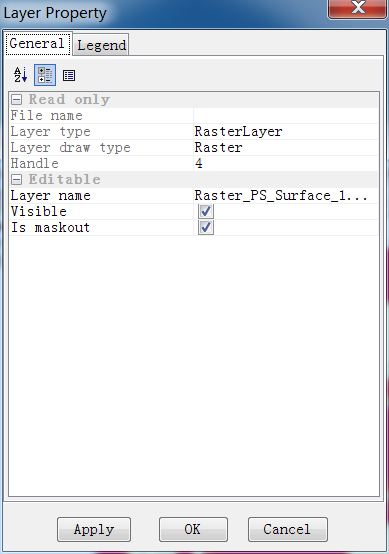

Raster layer properties:

../../../_images/layerproperty_rasterlayer.png

Web map layer properties:

../../../_images/layerproperty_webmaplayer.png
