Density-Based Spatial Clustering of Applications with NoiseΒΆ

DBSCAN (Density-Based Spatial Clustering of Applications with Noise) finds a number of clusters starting from the estimated density distribution of corresponding nodes.

from miml import datasets
from miml.cluster import DBSCAN

fn = os.path.join(datasets.get_data_home(), 'clustering', 'chameleon',
    't4.8k.txt')
df = DataFrame.read_table(fn, header=None, names=['x1','x2'],
    format='%2f')
x = df.values

model = DBSCAN(min_pts=20, radius=10)
y = model.fit_predict(x)

k = 6
levs = range(k)
levs.append(int(y.max()))
cols = makecolors(k)
cols.append('gray')
scatter(x[:,0], x[:,1], c=y, edgecolor=None, s=3, levels=levs, colors=cols)

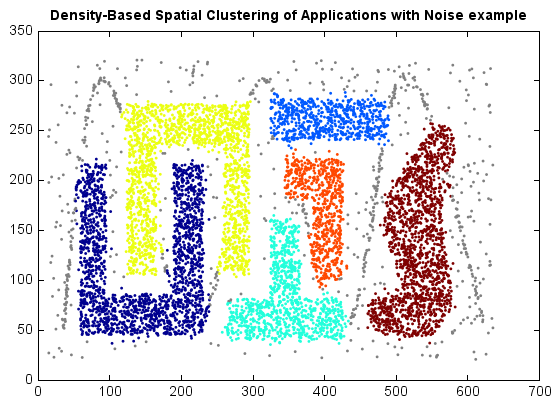

title('Density-Based Spatial Clustering of Applications with Noise example')
../../../_images/dbscan_1.png
