MeteoInfo 1.4.9 was released (2018-4-13)ΒΆ

  • Add figure, mapaxes and axes3d modules in plotlib package.

  • Add boolean array.

  • Add left and right title.

  • Update micaps data reading functions.

  • Add pcolor and pcolorm functions.

  • Default read/write encoding of dBase file (part of shape file) changed to utf-8. Add .cpg file support for encoding.

  • Add T test and Chisquare test functions. Add normal, beta and many other distributions.

  • Add mouse wheel moved event for figure zooming.

  • Add add_bil function in midata module to open .bil data file.

  • Some bug fix and existing functions update.

Bata distribution:

from mipylib.numeric import stats

x = arange(0.01, 1, 0.01)
aa = [0.5, 5, 1, 2,2]
bb = [0.5, 1, 3, 2 ,5]
ss = ['-b', '-r', '-c', '-g', '-m']

#PDF
subplot(1,2,1)
for a,b,s in zip(aa,bb,ss):
    y = stats.beta.pdf(x, a, b)
    plot(x, y, s, label=r'$\alpha = %.1f, \beta = %.1f$' % (a, b))
legend(loc='upper left', facecolor='w')
ylim(0, 5)
xlim(0, 1)
title('PDF')

#CDF
subplot(1,2,2)
for a,b,s in zip(aa,bb,ss):
    y = stats.beta.cdf(x, a, b)
    plot(x, y, s, label=r'$\alpha = %.1f, \beta = %.1f$' % (a, b))
legend(loc='lower right', facecolor='w')
ylim(0, 1)
xlim(0, 1)
title('CDF')

suptitle('Beta distribution')
../_images/beta_distribution.png

GUI map script:

# coding=utf-8

import java.awt as awt
import javax.swing as swing
from java.awt.event import KeyEvent
from java.io import File
from javax.swing.filechooser import FileNameExtensionFilter
from javax.imageio import ImageIO
import inspect
import os
import sys
import mipylib.miutil as miutil
import mipylib.geolib as geolib
from mipylib.plotlib.figure import Figure

class MainGUI(swing.JFrame):

    def __init__(self):
        super(MainGUI, self).__init__()

        this_file = inspect.getfile(inspect.currentframe())
        self.currentPath = os.path.abspath(os.path.dirname(this_file))
        print self.currentPath

        self.initUI()

    def initUI(self):
        #Add menu bar
        menubar = swing.JMenuBar()
        menu_file = swing.JMenu('File')
        menu_file.setMnemonic(KeyEvent.VK_F)
        menuItem_fileExit = swing.JMenuItem('Exit', None,
            actionPerformed=self.onClick_exit)
        menuItem_fileExit.setMnemonic(KeyEvent.VK_C)
        menu_file.add(menuItem_fileExit)
        menubar.add(menu_file)
        self.setJMenuBar(menubar)

         #Add tool bar
        toolbar = swing.JToolBar()
        toolbar.setPreferredSize(awt.Dimension(300,25))
        self.add(toolbar, awt.BorderLayout.NORTH)
        #Add layer button
        icon = ImageIO.read(File(os.path.join(self.currentPath, 'image/add_layer.png')))
        icon = swing.ImageIcon(icon)
        exitButton = swing.JButton(icon, actionPerformed=self.click_addlayer)
        toolbar.add(exitButton)
        toolbar.addSeparator()
        #Zoom buttons
        icon = ImageIO.read(File(os.path.join(self.currentPath, 'image/zoom_in.png')))
        icon = swing.ImageIcon(icon)
        zoomInButton = swing.JButton(icon, actionPerformed=self.click_zoomIn)
        toolbar.add(zoomInButton)
        icon = ImageIO.read(File(os.path.join(self.currentPath, 'image/zoom_out.png')))
        icon = swing.ImageIcon(icon)
        zoomOutButton = swing.JButton(icon, actionPerformed=self.click_zoomOut)
        toolbar.add(zoomOutButton)
        icon = ImageIO.read(File(os.path.join(self.currentPath, 'image/pan.png')))
        icon = swing.ImageIcon(icon)
        panButton = swing.JButton(icon, actionPerformed=self.click_pan)
        toolbar.add(panButton)
        icon = ImageIO.read(File(os.path.join(self.currentPath, 'image/full_extent.png')))
        icon = swing.ImageIcon(icon)
        fullExtentButton = swing.JButton(icon, actionPerformed=self.click_fullExtent)
        toolbar.add(fullExtentButton)
        toolbar.addSeparator()
        #Identifer
        icon = ImageIO.read(File(os.path.join(self.currentPath, 'image/identifer.png')))
        icon = swing.ImageIcon(icon)
        idenButton = swing.JButton(icon, actionPerformed=self.click_identifer)
        toolbar.add(idenButton)

        #Add figure
        self.fig = Figure()
        self.fig.set_mousemode('pan')
        self.ax = self.fig.add_axes(position=[0,0,1,1], axestype='map', \
            proj='merc', aspect='auto', gridlabel=False, frameon=False)
        self._loadlayers()
        self.ax.axis([80,130,20,50])
        self.add(self.fig)

        self.pack()

        #Set main form
        icon = ImageIO.read(File(os.path.join(self.currentPath, 'image/earth_24.png')))
        self.title = 'Map axes'
        self.setIconImage(icon)
        self.defaultCloseOperation = swing.JFrame.DISPOSE_ON_CLOSE
        self.windowClosing = self.formWindowClosing

    def _loadlayers(self):
        self.ax.webmap(provider='GoogleSatelliteMap')
        self.ax.geoshow('cn_province', edgecolor='b')

    def click_addlayer(self, e):
        fc = swing.JFileChooser()
        filter = FileNameExtensionFilter('shape files', ['shp'])
        fc.addChoosableFileFilter(filter)
        result = fc.showOpenDialog( None )
        if result == swing.JFileChooser.APPROVE_OPTION :
            f = fc.getSelectedFile()
            layer = geolib.shaperead(f.getAbsolutePath())
            self.ax.add_layer(layer)
            self.fig.draw()

    def click_zoomIn(self, e):
        self.fig.set_mousemode('zoom_in')

    def click_zoomOut(self, e):
        self.fig.set_mousemode('zoom_out')

    def click_pan(self, e):
        self.fig.set_mousemode('pan')

    def click_fullExtent(self, e):
        self.fig.onUndoZoomClick()

    def click_identifer(self, e):
        self.fig.set_mousemode('identifer')

    def formWindowClosing(self, e):
        self.dispose()

    def onClick_exit(self, e):
        self.dispose()

if __name__ == '__main__':
    frm = MainGUI()
    frm.pack()
    frm.size = (1000, 650)
    frm.locationRelativeTo = None
    frm.visible = True

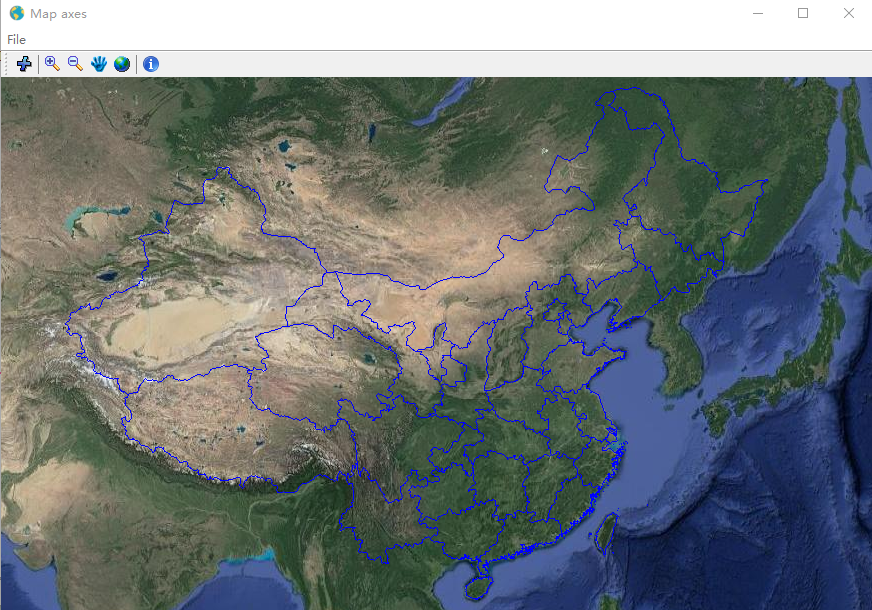

../_images/gui_map.png
