MeteoInfo 3.9 was released (2024-7-25)

  • Add Point2DCollection, LineCollection classes

  • Add ·makemarkers· function

  • Add Transform for graphics

  • Add avoidcoll argument in barbs, quiver and stationmodel functions

  • Add crs module and some common used projections in geolib package

  • Add velocity_potential and stream_function functions

  • Add magic, convolve functions

  • Add Rotation class for 3-D rotation of vectors

  • Support long type data math operators

  • Add _eof sub-package for EOF analysis

  • Add isin function in DataFrame and Series

  • Support CA/CB, SA/SB, SC, PA, CC radar data file

  • Update netcdf-java to version 5.6.0

  • Update flatlaf to version 3.5

  • Update rsyntaxtextarea to version 3.4.0

  • Some other bugs fixed

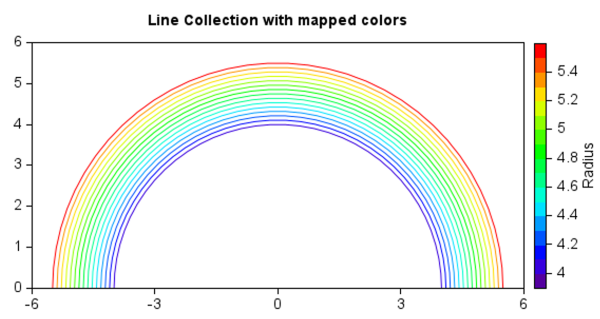

LineCollection example

# create a list of half-circles with varying radii
num_arcs = 15
theta = np.linspace(0, np.pi, 36)
radii = np.linspace(4, 5.5, num=num_arcs)
arcs = [np.column_stack([r * np.cos(theta), r * np.sin(theta)]) for r in radii]

lines = plt.LineCollection(arcs, array=radii, cmap='rainbow', antialias=True)
ax = axes(aspect='equal')
ax.add_graphic(lines)
ylim(0, 6)
colorbar(lines, label='Radius')
title('Line Collection with mapped colors')
../_images/linecollection_1.png

Create map axes with given projection

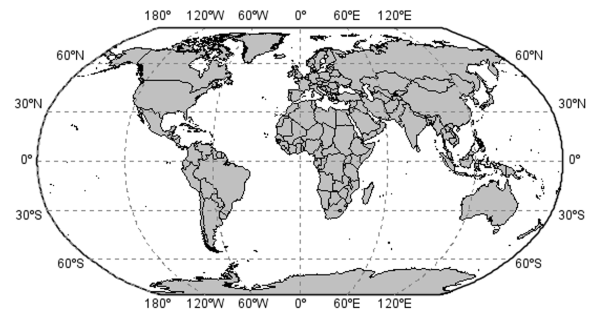

Robinson projection

axesm(projection=geolib.Robinson(), axison=False, frameon=False)
grid(True, tickvisible=True, tickposition='all', fontsize=12)
geoshow('country', facecolor='lightgray')
xticks(arange(-180, 181, 60))
yticks(arange(-60, 61, 30))
axis()
../_images/proj_robinson.png

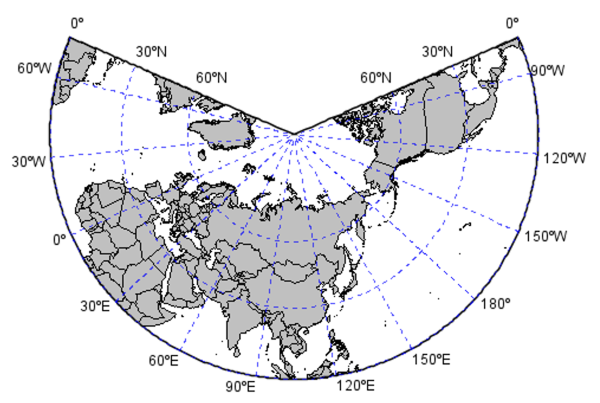

Lambert conformal projection

proj = geolib.LambertConformal(central_longitude=104.35, cutoff=0)
ax = axesm(projection=proj, frameon=False, axison=False)
geoshow('country', facecolor='lightgray')
grid(color='b', alpha=0.7, tickvisible=True, tickposition='all',
    tickfont=dict(size=12))
xticks(arange(-180, 181, 30))
yticks(arange(0, 61, 30))
axis()
../_images/proj_lambert.png

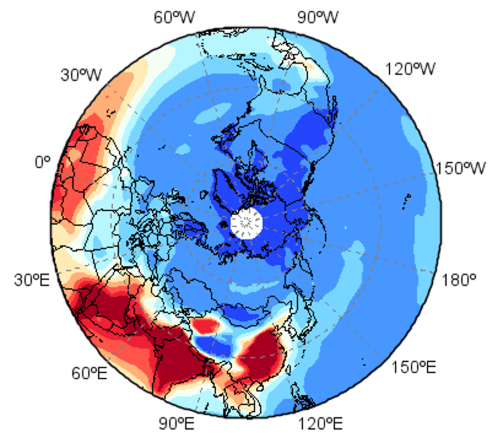

North polar stereographic projection

f = addfile(r'D:\Temp\nc\Mulyimean_AOD_2007_2019-D_N_mean.nc')
aod = f['TAOD'][:]
lat = f['lat'][:]
lon = f['lon'][:]
lon = np.append(lon, [lon[-1] + 5])
aod = np.append(aod, aod[:,0][:,np.newaxis], axis=1)

proj = geolib.NorthPolarStereo(central_longitude=105, cutoff=10)
axesm(projection=proj, axison=False, frameon=False)
geoshow('country')
levels = arange(0,0.5,0.05)
layer = contourf(lon, lat, aod, levels, extend='both', cmap='BlueDarkRed18', transform=geolib.PlateCarree())
grid(True, color='gray', tickvisible=True, tickposition='all')
xticks(arange(-180, 181, 30))
yticks([30, 60])
axis()
../_images/proj_northstereo.png
