Convert WRF out data to ARL data

ARL meteorological data format is specified using in HYSPLIT model. This is an example script for converting WRF out netCDF data to ARL data.

#---- Set data folder
datadir = 'D:/Temp/nc/wrf'
#---- Set output data file
outfn = os.path.join(datadir, 'test1_wrfout1.arl')
if os.path.exists(outfn):
    os.remove(outfn)
#---- Read a netCDF data file
infn = os.path.join(datadir, 'wrfout_d01_1984-05-30_12_00_00-subset')
print(infn)
inf = addfile(infn)
print('NetCDF file has been opened...')
#---- Set output ARL data file
arlf = addfile(outfn, 'c', dtype='arl')
#---- Set variable and level list
wvar2d = ['HGT','PSFC','PBLH','UST','SWDOWN','HFX','LH','T2','U10','V10','RAINNC']
wvar3d = ['P','T','U','V','W','QVAPOR']
avar2d = ['SHGT','PRSS','PBLH','USTR','DSWF','SHTF','LHTF','T02M','U10M','V10M','TPPA']
avar3d = ['PRES','TEMP','UWND','VWND','WWND','SPHU']
wv = inf['P']
nx = wv.dimlen(wv.ndim - 1)
ny = wv.dimlen(wv.ndim - 2)
levels = wv.dimvalue(wv.ndim - 3)
nz = len(levels)
arlf.setlevels(levels)
arlf.set2dvar(avar2d)
for l in levels:
    arlf.set3dvar(avar3d)
#---- Constant for poisson's equation
cp = 1004.0         # J/kg/K; specific heat
grav = 9.81         # m/s**2; gravity
rdry = 287.04       # J/kg/K; gas constant
rovcp = rdry / cp   # constant for poisson's equation
#---- Write ARL data file
arlf.setx(wv.dimvalue(wv.ndim - 1))
arlf.sety(wv.dimvalue(wv.ndim - 2))
tNum = inf.timenum()
fhour = 0
for t in range(0, tNum):
    print 'Time index: ' + str(t)
    atime = inf.gettime(t)
    print atime.strftime('%Y-%m-%d %H:00')
    dhead = arlf.getdatahead(inf.proj, 'AWRF', 1, fhour, atime.minute)
    #Pre-write index record without checksum - will be over-write latter
    arlf.writeindexrec(atime, dhead)
    #Checksum list
    ksumlist = []
    #Write 2d variables
    ksums = []
    for avname,wvname in zip(avar2d, wvar2d):
        print(avname + ' ' + wvname)
        gdata = inf[wvname][t,:,:]
        if avname == 'PRSS':
            gdata = gdata * 0.01
        elif avname == 'TPPA':
            gdata = gdata * 0.001
        ksum = arlf.writedatarec(atime, 0, avname, fhour, 99, gdata)
        ksums.append(ksum)
    ksumlist.append(ksums)
    #Write 3d variables
    wwnd_l = inf['W'][t]
    wwnd_l = meteo.wrf.destagger(wwnd_l, -3)
    for lidx in range(0, nz):
        ksums = []
        print(lidx)
        pp = inf['P'][t,lidx,:,:]
        pb = inf['PB'][t,lidx,:,:]
        pres = pp + pb
        uwnd = inf['U'][t,lidx,:,:]
        uwnd = meteo.wrf.destagger(uwnd, -1)
        vwnd = inf['V'][t,lidx,:,:]
        vwnd = meteo.wrf.destagger(vwnd, -2)
        temp = inf['T'][t,lidx,:,:]
        #potential to ambient temperature
        temp = (temp + 300.) * (pres / 100000.) ** rovcp
        sphu = inf['QVAPOR'][t,lidx,:,:]
        #convert mixing ratio to specific humidity
        sphu = sphu / (1. + sphu)
        wwnd = wwnd_l[lidx]
        #convert vertical velocity from m/s to hPa/s using omega = -W g rho
        wwnd = -wwnd * grav * pres * 0.01 / (rdry * temp * (1.0 + 0.6077 * sphu))

        pres = pres * 0.01
        ksum = arlf.writedatarec(atime, lidx + 1, 'PRES', fhour, 99, pres)
        ksums.append(ksum)
        ksum = arlf.writedatarec(atime, lidx + 1, 'TEMP', fhour, 99, temp)
        ksums.append(ksum)
        ksum = arlf.writedatarec(atime, lidx + 1, 'UWND', fhour, 99, uwnd)
        ksums.append(ksum)
        ksum = arlf.writedatarec(atime, lidx + 1, 'VWND', fhour, 99, vwnd)
        ksums.append(ksum)
        ksum = arlf.writedatarec(atime, lidx + 1, 'WWND', fhour, 99, wwnd)
        ksums.append(ksum)
        ksum = arlf.writedatarec(atime, lidx + 1, 'SPHU', fhour, 99, sphu)
        ksums.append(ksum)
        ksumlist.append(ksums)
    #Re-write index record with checksum
    arlf.writeindexrec(atime, dhead, ksumlist)
    fhour += 6
arlf.close()
print('Finished!')

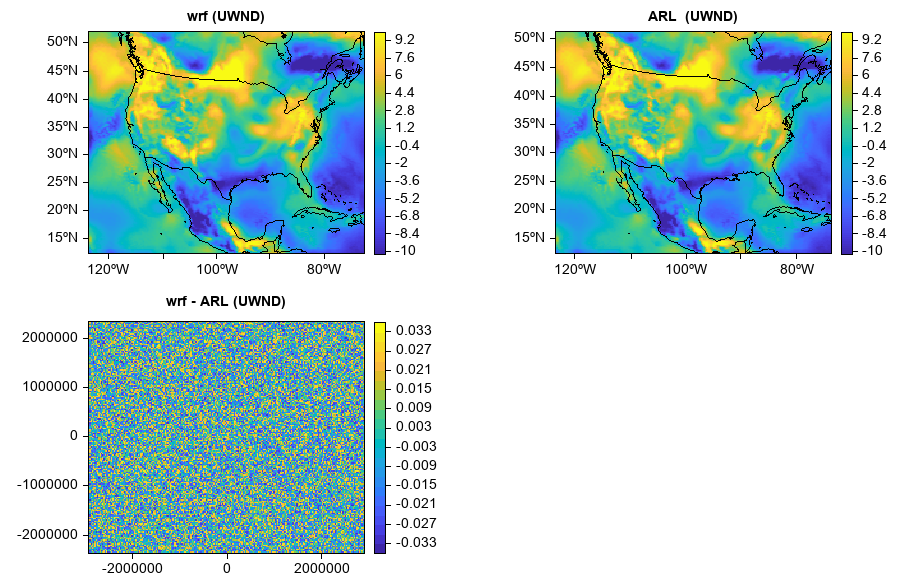

Comparing WRF netCDF data with converted ARL data.

ddir = 'D:/Temp/nc/wrf'
f1 = addfile(os.path.join(ddir, 'wrfout_d01_1984-05-30_12_00_00-subset'))
w1 = f1['U'][0,10]
w1 = meteo.wrf.destagger(w1, -1)

f = addfile(os.path.join(ddir, 'test1_wrfout1.arl'))
vname = 'UWND'
w = f[vname][0,10]

subplot(2,2,1, axestype='map', projection=f1.projection)
geoshow('country')
levs = arange(-10, 10, 0.2)
imshow(w1, levs, transform=f1.projection)
colorbar()
title('wrf ({})'.format(vname))

subplot(2,2,2, axestype='map', projection=f.projection)
geoshow('country')
imshow(w, levs, transform=f.projection)
colorbar()
title('ARL  ({})'.format(vname))

subplot(2,2,3)
imshow(w1 - w, 20)
colorbar()
title('wrf - ARL ({})'.format(vname))
